Dental implants have revolutionized restorative dentistry by providing patients with durable, functional, and aesthetically pleasing replacements for missing teeth. However, the long-term success of dental implants depends on many factors, one of the most critical being the correct application of torque to the implant abutment screws. Proper torque ensures the stability, longevity, and biological compatibility of the implant restoration. This comprehensive article explores why proper torque is essential, the ideal torque values for implant abutment screws, the consequences of incorrect torque, and best practices for clinicians to optimize implant outcomes.

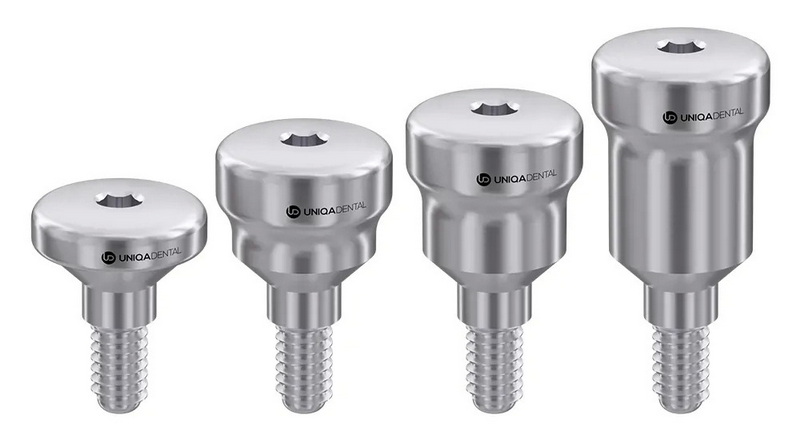

Torque is the rotational force applied to tighten the abutment screw that connects the implant fixture to the prosthetic crown or abutment. It is measured in Newton-centimeters (Ncm). The goal is to apply enough force to secure the components firmly without causing damage to the screw or implant.
When the abutment screw is tightened to the recommended torque, it elongates slightly, acting like a spring that clamps the implant and abutment together. This clamping force, known as preload, is crucial for maintaining the joint's integrity under functional loads such as chewing and speaking. Proper preload reduces micro-movements at the implant-abutment interface, which helps prevent screw loosening and maintains a biological seal that protects the surrounding bone and soft tissue.
The preload generated by the applied torque is directly related to the friction between the screw threads and the implant internal threads. This friction must be overcome to achieve the desired clamping force. Therefore, the ideal torque for implant abutment screws is carefully calculated to balance sufficient preload without exceeding the mechanical limits of the screw or implant.
The ideal torque varies depending on the implant system, screw material, and manufacturer recommendations. Most implant manufacturers specify torque values between 20 and 35 Ncm for abutment screws. Here are some typical values from leading brands:
| Manufacturer | Implant Type | Recommended Torque (Ncm) | Driver Type |
|---|---|---|---|
| Astra | 3.0 mm | 15 Ncm | 0.050" Hex |
| Astra | 3.5 - 4.0 mm | 20 Ncm | 0.050" Hex |
| Astra | 4.5 - 5.0 mm | 25 Ncm | 0.050" Hex |
| BioHorizons | Internal 3.5 - 5.7 mm | 30 Ncm | 0.050" Hex |
| BioHorizons | External 3.5 mm | 30 Ncm | 0.050" Hex |
These values are guidelines; always follow the specific torque recommendations provided by the implant manufacturer to avoid complications.
- Screw Material: Titanium screws have different mechanical properties compared to gold or zirconia screws, affecting the torque limits.
- Implant Design: Internal hex, external hex, and morse taper connections have different torque requirements due to their mechanical engagement.
- Clinical Situation: Bone density, implant location, and prosthetic design may influence the torque applied.
- Lubrication: Presence of saliva or other fluids can alter friction and affect torque values.
Undertightening the abutment screw can lead to insufficient preload, allowing micro-movements between the implant and abutment. This can cause the screw to loosen over time, leading to instability of the prosthesis, discomfort, and potential implant failure. Screw loosening is one of the most common mechanical complications in implant dentistry and can necessitate additional clinical interventions.
Excessive torque can exceed the screw's yield strength, causing permanent deformation or fracture. Over-tightening can also damage the internal threads of the implant or cause microfractures in the surrounding bone, compromising osseointegration and implant stability. Such damage may require removal and replacement of the implant or abutment, increasing treatment time and cost.
Proper torque helps create a tight seal at the implant-abutment interface, preventing bacterial infiltration that can lead to peri-implantitis—a destructive inflammatory process affecting the soft and hard tissues around implants. A stable connection also minimizes micromotion during the healing phase, promoting successful osseointegration and long-term implant success.
A correctly torqued abutment screw maintains the mechanical integrity of the implant restoration, reducing the risk of prosthetic complications such as crown loosening or fracture. This stability ensures patient comfort and satisfaction with the implant-supported prosthesis.
| Problem | Cause | Potential Outcome |
|---|---|---|
| Screw Loosening | Under-torquing | Prosthesis instability, discomfort, failure |
| Screw Fracture | Over-torquing | Implant damage, need for screw replacement |
| Thread Stripping | Excessive torque | Loss of screw retention, implant damage |
| Bone Damage | Over-torquing | Microfractures, delayed healing |
| Biological Seal Failure | Improper torque | Bacterial infiltration, peri-implantitis |
A patient presented with a loose implant crown three months after placement. Upon examination, the abutment screw was found to be under-torqued, resulting in screw loosening and micro-movement. Retightening the screw to the ideal torque resolved the issue, highlighting the importance of correct torque application.
Hand tightening is unreliable and often results in inconsistent torque application. A calibrated torque wrench ensures the exact torque recommended by the manufacturer is applied. Torque wrenches should be regularly calibrated to maintain accuracy. Digital torque wrenches provide precise readings and reduce human error.
Each implant system has specific torque requirements based on screw material and design. Always adhere to these guidelines to avoid mechanical complications. Using incorrect torque values can void warranties and compromise implant success.
Repeated tightening and loosening reduce the screw's ability to maintain preload. It is recommended to limit screw reuse to a maximum of five times to preserve mechanical properties. Reusing screws beyond this limit increases the risk of screw fracture and loosening.
Applying lubricants or medications on the screw threads can alter friction and affect torque values, potentially leading to premature loosening. If lubrication is necessary, consult the implant manufacturer's guidelines.
Due to the settling effect, retightening the screw after 10 minutes helps maintain preload and reduces loosening risk. This practice compensates for microscopic surface irregularities that compress under load.
Recording the torque applied during implant procedures helps track clinical outcomes and identify potential issues early. This documentation is valuable for quality control and medico-legal purposes.
Bone density varies among patients and anatomical sites, influencing the torque that can be safely applied. Dense cortical bone can tolerate higher torque values, while softer cancellous bone requires more cautious torque application to avoid bone microdamage. Clinicians should assess bone quality via radiographs or tactile feedback during implant placement and adjust torque accordingly.
The design of the prosthetic restoration, including the type of abutment and crown material, affects the torque requirements. For example, angled abutments or multi-unit abutments may require different torque values to ensure stability. Additionally, screw-retained versus cement-retained prostheses have different mechanical demands.

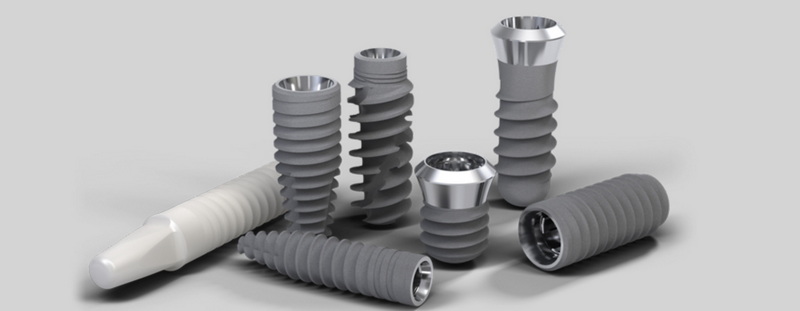

Implant-abutment connections vary widely, including external hex, internal hex, morse taper, and conical connections. Each design has unique mechanical properties affecting torque application:
- External Hex: Traditionally used, but more prone to screw loosening; requires precise torque control.
- Internal Hex: Provides better stability and distributes forces more evenly; ideal torque values may be higher.
- Morse Taper: Creates a friction-fit connection that may require less torque but demands precise application to avoid microgaps.
Understanding these differences helps clinicians select appropriate torque values and techniques.
Proper torque application for implant abutment screws is fundamental to the success and longevity of dental implants. Applying the ideal torque ensures a stable, durable connection that resists loosening and mechanical failure while promoting biological health around the implant. Clinicians must use calibrated torque devices, follow manufacturer guidelines, and understand the mechanical principles behind torque to optimize patient outcomes. Neglecting proper torque can lead to complications such as screw loosening, fracture, and implant failure, undermining the benefits of implant therapy.
By adhering to best practices and maintaining awareness of the ideal torque for implant abutment screws, dental professionals can significantly improve the predictability and success of implant restorations, ultimately enhancing patient satisfaction and oral health.
The ideal torque typically ranges from 20 to 35 Ncm, depending on the implant system and manufacturer specifications. Always follow the specific recommendations provided with the implant components.
Under-torquing can cause the screw to loosen over time, leading to prosthesis instability, discomfort, and potential implant failure.
Yes, over-torquing can cause permanent deformation or fracture of the screw, damage the implant threads, and cause microfractures in the surrounding bone, compromising implant stability.
Torque wrenches should be calibrated regularly, ideally annually or according to manufacturer instructions, to ensure accurate torque delivery.
Screw reuse should be limited to a maximum of five tightening/loosening cycles, as repeated use reduces the screw's ability to maintain preload and increases the risk of loosening.
