When working with dental implants, precise torque application on abutment screws is critical to ensure the longevity and success of the restoration. For clinicians using Nobel Biocare implant systems, understanding and following the correct torque values is essential to avoid complications such as screw loosening or fracture. This comprehensive article explores where to find the Nobel Biocare abutment screw torque chart, explains the importance of torque values, provides practical guidance on torque application, and answers frequently asked questions related to Nobel Biocare abutment screw torque.
Nobel Biocare abutment screw torque refers to the specific amount of rotational force applied to the abutment screw that connects the prosthetic component to the implant fixture. This torque is measured in Newton centimeters (Ncm), and applying the correct torque ensures:
- Proper seating of the abutment
- Prevention of screw loosening
- Avoidance of screw fracture or deformation
- Maintenance of the biological seal around the implant
The torque values vary depending on the type of abutment and implant system used. Nobel Biocare provides detailed torque specifications for their various abutments, including straight, angled, and multi-unit abutments.
Torque is not just a technical specification; it directly affects the clinical outcome. When an abutment screw is tightened to the correct torque:
- It creates an optimal preload, which is the tension in the screw that holds the abutment firmly in place.
- This preload counters the functional forces generated during chewing and biting.
- If the torque is too low, the screw may loosen over time, leading to micro-movements, bacterial infiltration, and peri-implantitis.
- Conversely, if the torque is too high, the screw can fracture or strip, compromising the restoration and requiring additional surgical or prosthetic intervention.
Therefore, understanding and applying the correct Nobel Biocare abutment screw torque is fundamental to implant success.
The most authoritative source for Nobel Biocare abutment screw torque values is the Prosthetic Torque Guide provided by Nobel Biocare. This guide is available as a PDF document on the official Nobel Biocare website and includes detailed torque values for different prosthetic components and abutments.
- The guide specifies torque values such as 35 Ncm for prosthetic screws on final restorations and 15 Ncm for multi-unit abutments depending on angulation and type.
- It also includes torque values for temporary components like healing abutments and plastic temporary copings, which require lower torque (around 15 Ncm or hand-tightened).
This document is essential for clinicians to consult before performing prosthetic procedures to ensure compliance with manufacturer recommendations.
Nobel Biocare's technical support pages also clarify torque-related questions, emphasizing that while implant insertion torque has a specified maximum, abutment screws have precise fastening torque values that must be adhered to. They recommend always consulting the Implant Torque Guide for the most accurate and updated information.
- Clinician Manuals and Surgical Protocols: Nobel Biocare provides detailed manuals with torque specifications for each implant system.
- Continuing Education Courses: Many dental implant education platforms offer courses that include torque application techniques and charts.
- Professional Forums and Peer-Reviewed Journals: While these are secondary sources, they often discuss torque values based on clinical experience and research.
| Abutment Type | Recommended Torque (Ncm) | Notes |
|---|---|---|
| Straight Abutments | 35 Ncm | Standard final prosthetic screw torque |
| Angulated Multi-unit (17°, 30°) | 15 Ncm | Lower torque due to angulation |
| Angulated Multi-unit (45°, 60°) | 35 Ncm | Higher torque for larger angulations |
| Temporary Abutments | Max 15 Ncm | Usually hand-tightened or lightly torqued |
These values are critical to avoid overtightening, which can lead to screw fracture, or undertightening, which may cause screw loosening.
Nobel Biocare offers several implant systems, including NobelActive, NobelReplace, and NobelParallel. While the torque values for abutment screws are generally consistent (mostly 35 Ncm for final prosthetic screws), slight variations exist depending on the implant design and abutment interface.
For example:
- NobelActive System: Recommended torque for abutment screws is 35 Ncm.
- NobelReplace System: Similar torque values apply; however, multi-unit abutments may require 15 Ncm depending on angulation.
- NobelParallel System: Torque values align with the general prosthetic torque guide.
Always verify torque values specific to the implant system and abutment type in the official documentation.

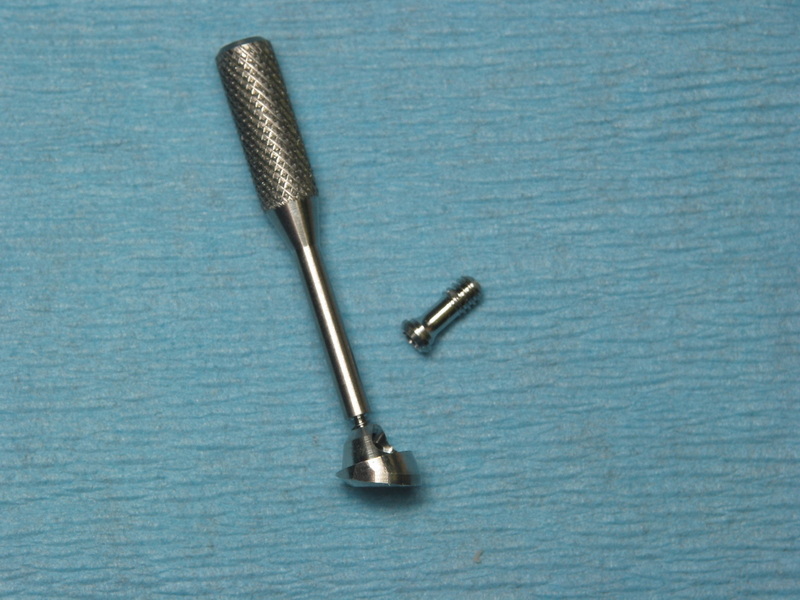

- Manual Torque Wrench Prosthetic: Calibrated to apply precise torque values, typically 15 or 35 Ncm.
- Unigrip™ Screwdriver: Used to engage the abutment screw.
- Multi-unit Driver: For multi-unit abutments, especially angled ones.
1. Seat the Abutment: Place the abutment on the implant and ensure proper fit and alignment.
2. Use the Correct Driver: Attach the Unigrip screwdriver or multi-unit driver to the torque wrench.
3. Set Torque Wrench: Adjust the wrench to the recommended torque value (e.g., 35 Ncm for straight abutments).
4. Apply Torque: Slowly tighten the screw until the torque wrench clicks, indicating the set torque has been reached.
5. Repeat Torque Application: It is recommended to torque the screw 2-3 times to ensure proper seating and accurate torque due to the lubricant coating on screws (Torque Tight coating).
6. Avoid Over-tightening: Never exceed the recommended torque to prevent screw fracture.
- Clean the Screw and Abutment Interface: Debris or saliva can affect torque accuracy.
- Use a Calibrated Torque Wrench: Regularly check calibration to ensure precision.
- Apply Torque Slowly and Evenly: Rapid torque application can lead to inaccurate preload.
- Avoid Cross-Threading: Ensure the screw threads smoothly before applying torque.
- Prevents Screw Loosening: Proper torque ensures the abutment screw remains secure under functional loads.
- Avoids Screw Fracture: Over-tightening can cause permanent damage to the screw.
- Ensures Biological Seal: Correct torque helps maintain the seal between implant and abutment, protecting peri-implant tissues.
- Improves Prosthetic Longevity: Accurate torque values contribute to the long-term success of the implant restoration.
Clinicians who do not adhere to these torque values risk complications that may require additional treatment or replacement of components.
- Screw Loosening: Leads to micro-movement, bacterial ingress, and possible peri-implantitis.
- Screw Fracture: Requires removal and replacement, which can be complex and costly.
- Abutment Misfit: Can cause mechanical complications and patient discomfort.
- Prosthetic Failure: Premature failure of crowns or bridges.
According to Nobel Biocare, an abutment screw can be torqued up to 5 times before the torque-tight coating wears off, which affects the accuracy of torque application. The first torque application removes some of the coating, while the second and third applications achieve the most accurate torque. Beyond five times, the screw may not reach the intended torque level, although it will not break unless over-torqued.
Nobel Biocare abutment screws are coated with a proprietary Torque Tight™ coating, a lubricant that reduces friction and allows for consistent and accurate torque application. This coating helps maintain the preload in the screw and prevents loosening.
- Schedule regular check-ups to monitor screw stability.
- If loosening is detected, retorque to recommended values.
- Replace screws that show signs of wear or damage.
- Always use genuine Nobel Biocare screws and abutments.
- Mixing components from different manufacturers can alter torque requirements and compromise fit.
- Avoid contamination of screws with blood or saliva before torque application.
- Store screws and abutments in a clean, dry environment.
Finding and adhering to the correct Nobel Biocare abutment screw torque chart is vital for the success and longevity of dental implant restorations. The official Prosthetic Torque Guide from Nobel Biocare remains the best resource for accurate torque values, which vary by abutment type and angulation. Using the proper torque wrench and technique ensures optimal screw tightness without risking damage. Repeated torque applications up to five times are acceptable to achieve accurate torque due to the screw's lubricating coating. Following these guidelines prevents clinical complications such as screw loosening or fracture and maintains the biological seal essential for implant health.
By integrating these torque recommendations into clinical practice, dental professionals can enhance implant restoration outcomes, improve patient satisfaction, and reduce the risk of mechanical complications.
The recommended torque for straight Nobel Biocare abutment screws is 35 Ncm.
Angled multi-unit abutments (17° and 30°) require a torque of 15 Ncm, while larger angulations (45°, 60°) require 35 Ncm.
No, hand screwdrivers are not recommended as they cannot apply the precise torque required. A calibrated torque wrench must be used.
A Nobel Biocare abutment screw can be torqued up to 5 times before the torque-tight coating wears off, affecting torque accuracy.
Overtightening can lead to screw fracture or permanent deformation, which may cause clinical complications and require component replacement.
