Dental implantology has evolved significantly over the years, with implant abutment screw design playing a crucial role in the success and longevity of anterior implants. The anterior region demands not only functional stability but also high esthetic standards, making the choice of abutment screw design pivotal. This comprehensive article explores the best implant abutment screw designs for anterior implants, analyzing their biomechanical properties, esthetic outcomes, and clinical performance.

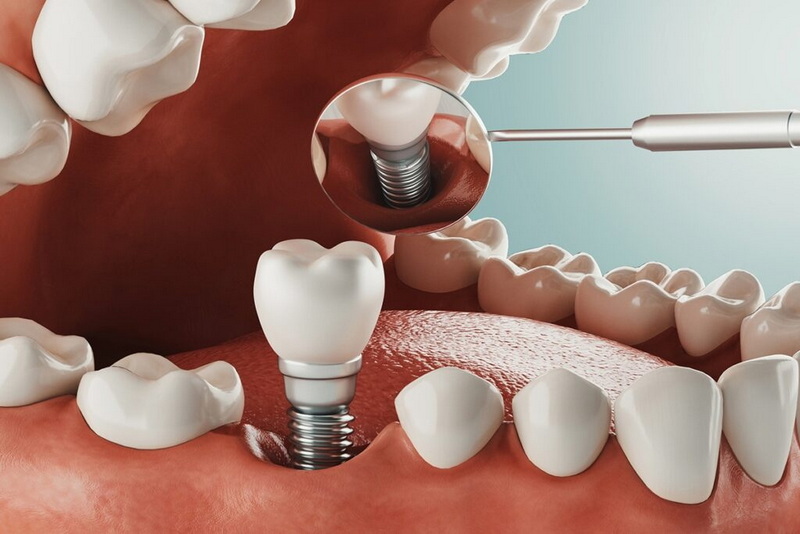

The implant abutment screw is the critical component that secures the abutment to the implant fixture. Its design affects the mechanical stability, resistance to loosening, and the overall success of the implant restoration. Various designs exist, including:
- Threaded screws (straight, angled, custom)
- Frictional screws (press-fit, cold welded)
- Non-threaded screws (cementable types)
The screw's geometry, material, and head design influence its performance under functional loads.
The implant abutment screw design determines the distribution of forces between the implant and the prosthetic components. A well-designed screw minimizes micro-movements, reduces the risk of screw loosening or fracture, and ensures a tight seal at the implant-abutment interface to prevent bacterial infiltration. In anterior implants, where esthetics and function are paramount, the screw design must also accommodate angulation and soft tissue considerations.
- Description: A conical connection where the abutment fits tightly into the implant with a friction lock.
- Advantages: Exhibits superior survival rates, success, and minimal marginal bone loss compared to other designs.
- Mechanical Behavior: The conical angle creates a frictional force that stabilizes the screw, reducing micro-movements and screw loosening.
- Esthetics: Although esthetic outcomes are good, they are slightly less favorable compared to internal hexagon connections.
The Morse taper connection is widely regarded as the gold standard for anterior implants due to its excellent biomechanical stability. The frictional fit between the abutment and implant reduces micromotion, which is a primary cause of screw loosening and peri-implant bone loss. The design also promotes a tight seal, protecting the peri-implant tissues from bacterial invasion.
- Description: Features an internal hexagonal interface between the implant and abutment.
- Advantages: Provides better esthetic results and good mechanical stability.
- Complications: More prone to crown-cement loosening but less screw loosening compared to external hexagon designs.
- Biomechanics: Offers moderate resistance to lateral forces with a stable anti-rotational feature.
The internal hexagon connection allows for precise abutment positioning and is favored for its esthetic advantages in the anterior zone. Its anti-rotational design reduces the risk of abutment rotation under functional loads, contributing to screw stability.
- Description: The abutment sits on an external hexagonal platform on the implant.
- Advantages: Historically popular and easy to use.
- Disadvantages: Higher rates of screw loosening and dehiscence complications, less favorable in esthetic zones.
Although once the most common design, the external hexagon connection has been largely replaced by internal connections due to its susceptibility to mechanical complications such as screw loosening and micro-gap formation. These issues can compromise esthetics and implant longevity, especially in the anterior region.
The screw head design directly impacts the distribution of torque and the risk of screw deformation or fracture.
- Hexagonal vs. Star-shaped heads: Hexagonal screw heads demonstrate less deformation and lower fracture risk compared to star-shaped heads, which may fracture more rapidly due to greater contact surface stress.
- Flat vs. Conical heads: Flat heads distribute forces evenly, reducing loosening risk, whereas conical heads may have higher torque loss.
Studies have shown that hexagonal screw heads maintain preload better during cyclic loading, which is critical for anterior implants subjected to complex occlusal forces.
- Longer screws with more threads can increase retention but may not always reduce loosening under cyclic loading.
- Wider screw diameters withstand higher forces, contributing to screw strength and stability.
However, excessively long screws may complicate prosthetic procedures and increase the risk of screw fracture. Optimal screw length balances mechanical retention and clinical practicality.
- Shorter abutments (around 4 mm) tend to maintain torque better than taller abutments (7-10 mm), especially in cases with increased crown height space (CHS).
- Stock abutments show less screw loosening compared to milled or cast abutments under dynamic loading.
The abutment height influences the lever arm acting on the screw. Taller abutments create greater bending moments, increasing the risk of screw loosening or fracture.
- Proper torque application is critical; insufficient preload leads to loosening, while excessive torque can deform or fracture the screw.
- Torque values recommended by manufacturers (usually 20-35 Ncm) must be strictly followed using calibrated torque wrenches.
Preload is the tension created in the screw when tightened, which clamps the abutment securely to the implant. Maintaining this preload is essential to prevent micro-movements and screw loosening.

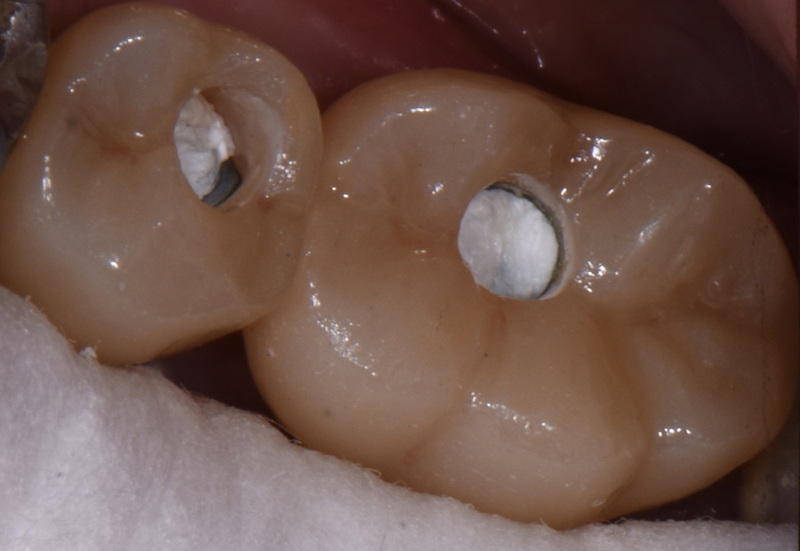

- Angulated screw channel (ASC) systems allow screw access in esthetically challenging anterior zones, improving esthetics without compromising mechanical strength.
- Angulation-correcting implants resist screw loosening better than straight implants.
The ASC design is particularly useful for anterior implants where screw access holes would otherwise be visible on the labial surface, compromising esthetics. By angulating the screw channel, clinicians can place the screw access in less visible areas while maintaining mechanical integrity.
The material composition of the abutment screw affects its strength, corrosion resistance, and biocompatibility.
- Titanium alloy (Ti-6Al-4V): The most common material due to its excellent strength-to-weight ratio and biocompatibility.
- Gold alloy: Used in some systems for its corrosion resistance and ease of torque application.
- Zirconia: Emerging as a ceramic option for esthetic abutments but less common for screws due to brittleness.
Titanium alloy screws are preferred in anterior implants due to their balance of mechanical properties and biological safety.
- Use of original components matching implant brand and material reduces mismatch and mechanical failure.
- Hybrid abutment crowns combining titanium bases with esthetic materials like zirconia offer a balance of strength and esthetics.
- Custom abutments designed via CAD/CAM allow precise angulation correction and soft tissue management, critical for anterior esthetics.
Hybrid abutment crowns integrate a titanium base with a zirconia or ceramic superstructure, combining the strength of metal with the esthetics of ceramics. This design reduces the risk of screw loosening by providing a stable interface and improved load distribution.
Digital workflows enable the fabrication of custom abutments tailored to the patient's anatomy and implant angulation. This precision enhances the fit and reduces mechanical complications related to screw loosening.
Research continues to focus on improving implant abutment screw design to enhance mechanical stability and esthetic outcomes. Some promising developments include:
- Surface treatments: Coatings to reduce bacterial adhesion and improve screw longevity.
- Smart screws: Embedded sensors to monitor preload and detect loosening early.
- Advanced materials: Development of high-strength ceramics and composites for screw fabrication.
These innovations aim to reduce complications such as screw loosening, fracture, and peri-implantitis, especially in the esthetically demanding anterior region.
The best implant abutment screw design for anterior implants balances mechanical stability, esthetic demands, and biological compatibility. Current evidence favors the Morse taper connection for superior survival, success, and marginal bone preservation, while the internal hexagon connection excels in esthetic outcomes. Key factors such as screw head design, proper torque application, abutment height, and angulation correction significantly influence screw stability and longevity. Clinicians should tailor abutment screw selection to individual clinical scenarios, employing original components and advanced CAD/CAM customization to optimize anterior implant success.
The Morse taper connection is considered the most stable due to its friction lock mechanism, resulting in less screw loosening and better marginal bone preservation.
Hexagonal screw heads deform less and have a lower risk of fracture compared to star-shaped heads, leading to better long-term stability.
Proper torque ensures optimal preload, which prevents screw loosening and avoids material deformation or fracture. Torque wrenches calibrated to manufacturer specifications should be used.
Yes, angulated screw channel (ASC) systems allow screw access to be positioned out of the esthetic zone, improving appearance without compromising mechanical strength.
Yes, shorter abutments (around 4 mm) tend to maintain screw torque better than taller abutments, especially in cases with increased crown height space.
