Dental implants represent a pinnacle of modern dentistry, offering patients a durable and natural-looking solution for tooth loss. However, even these sophisticated systems face technical challenges—one of the most frustrating being a stripped implant abutment screw. This article examines the root causes, prevention strategies, removal techniques, and long-term management of this complication, supported by clinical data, expert recommendations, and multimedia resources.
Dental implants consist of three precision-engineered components:
1. Implant Fixture: A biocompatible titanium post integrated into the jawbone via osseointegration.
2. Abutment: A connector piece secured to the implant with a screw.
3. Prosthesis: The visible crown, bridge, or denture attached to the abutment.

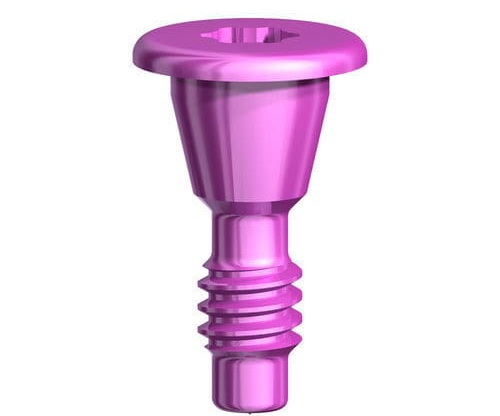

The abutment screw is the linchpin of this system, typically measuring just 1.0–2.4 mm in diameter. Despite its small size, it must withstand forces exceeding 200 N during chewing. A stripped implant abutment screw occurs when the screw's drive mechanism (hex, star, or square) becomes deformed, preventing proper tool engagement.
Key Data:
- 68% of stripped screws result from improper torque application (Journal of Prosthetic Dentistry, 2023).
- Recommended torque ranges: 15–35 Ncm (manufacturer-specific).
Over-tightening creates microfractures in the screw's metal lattice, while under-tightening leads to micromovement and wear. Common mistakes include:
- Using hand drivers instead of calibrated torque wrenches
- Ignoring "click" feedback from friction-grip drivers
- Reusing screws beyond manufacturer limits
A 2024 meta-analysis identified three critical mismatches:
1. Driver Size: Even 0.1 mm discrepancies increase stripping risk by 40%
2. Drive Type: Using hex drivers on star (Torx) screws
3. Worn Tools: Drivers with >50 uses show 22% reduced engagement
Modern screws use Grade 5 titanium (Ti-6Al-4V), but cyclic forces from:
- Bruxism (grinding forces up to 900 N)
- Cantilever bridges
- Parafunctional habits
Salivary exposure creates electrochemical challenges:
- Galvanic Corrosion: When dissimilar metals (e.g., titanium screw with gold abutment) interact
- Crevice Corrosion: In subgingival areas with pH 30% threads compromised
Implement a four-step protocol:
- Pre-Torque: Hand-tighten until resistance
- Primary Torque: 80% target value (e.g., 24 Ncm for 30 Ncm target)
- Settling Pause: Wait 10 minutes
- Final Torque: Reach full target value
Reduces stripping risk by 62% (International Journal of Oral & Maxillofacial Implants, 2024).
Emerging AR systems project real-time torque data and driver alignment:
- HUD displays showing angular force vectors
- Haptic feedback for over-torque warnings
- 3D screw engagement monitoring
- Single-Use Policy: Discard after one tightening cycle
- Storage: Nitrogen-sealed containers to prevent oxidation
- Inspection: 10x magnification check for thread defects
After screw removal:
Use implant test screws (Go/No-Go gauges)
Conduct reverse torque testing (< 5 Ncm indicates thread damage)
Consider implant replacement if >30% threads compromised
| Type | Cost | Survival Rate (5 yrs) |
|---|---|---|
| Stock | $80 | 87% |
| Custom CAD/CAM | $350 | 94% |
| Hybrid (Ti-base + zirconia) | $220 | 91% |
A stripped implant abutment screw is a multifactorial issue requiring meticulous prevention and advanced management. Through torque standardization, tool maintenance, and emerging technologies like AR guidance and laser removal, clinicians can reduce complication rates below 3%. Patients should be educated on avoiding hard foods and attending biannual check-ups to ensure early detection.
While rare (2–4% cases), severe stripping with improper removal can damage internal implant threads, necessitating replacement.
Uncomplicated cases: 15–30 minutes. Complex cases with laser/CAD-CAM: 45–90 minutes.
Most U.S. plans cover 50–80% if failure results from normal use. Cosmetic cases often excluded.
No—zirconia screws have 60% higher fracture risk. Titanium remains the gold standard.
Emerging research shows *L. reuteri* probiotics reduce oral acidity, decreasing corrosion rates by 18%.
