Dental implant therapy has revolutionized tooth replacement, offering high success rates and improved patient quality of life. However, mechanical complications such as implant abutment screw loosening and fracture remain significant challenges in implant dentistry. When an implant abutment screw fractures, retrieval of the broken fragment is often necessary to restore function and preserve the implant. This article explores the risks involved in implant screw retrieval procedures, discusses various techniques, and provides guidance for clinicians to minimize complications.
Implant abutment screw fractures, although relatively uncommon (incidence ranging from 0.5% to 8%), present a complex clinical problem due to the difficulty of removing the fractured fragments without damaging the implant. These fractures typically result from:
- Screw loosening: The most common precursor, often caused by improper fit, occlusal overload, or parafunctional habits like bruxism.
- Excessive torque application during insertion or retightening.
- Material fatigue and design flaws in the screw or implant system.
- Non-passive fit of the prosthesis and repeated screw tightening/loosening cycles.
The location of the fracture—whether above or inside the implant body—significantly influences retrieval difficulty and risk.

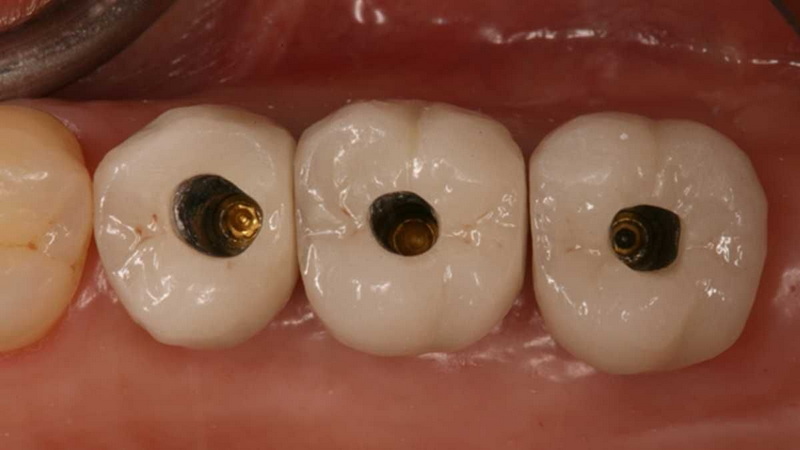

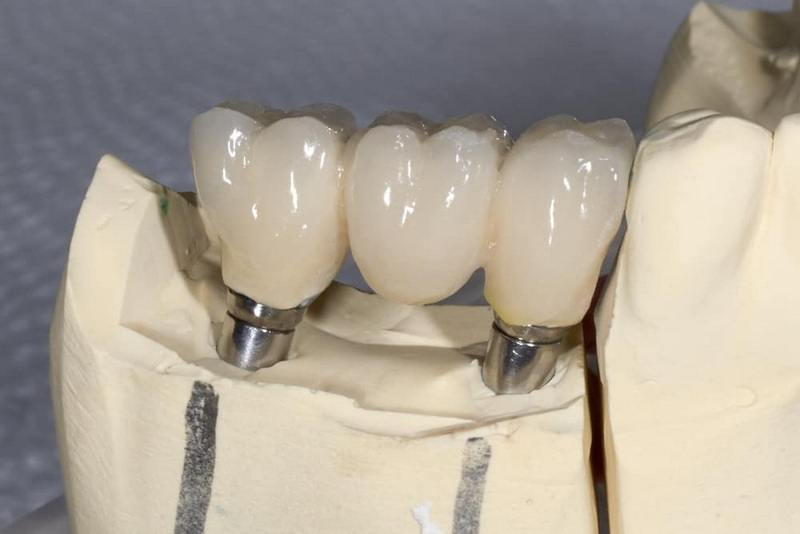

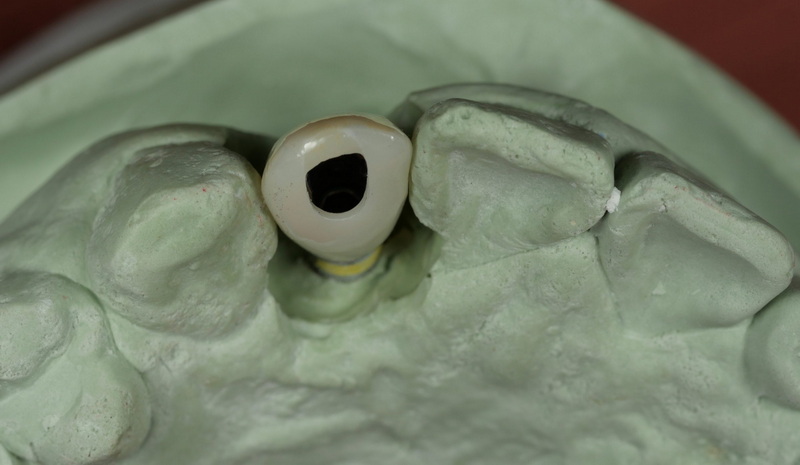

The implant abutment screw serves as the vital connection between the implant fixture embedded in the bone and the prosthetic crown or bridge. A fractured screw compromises this connection, leading to:
- Prosthesis instability or failure.
- Increased risk of bacterial infiltration and peri-implantitis.
- Patient discomfort and functional impairment.
Therefore, successful implant abutment screw retrieval is essential to maintain implant integrity and restore oral function without resorting to implant removal.
Implant screw retrieval procedures, while necessary, carry inherent risks that clinicians must carefully consider before and during treatment.
One of the greatest risks during screw retrieval is damage to the implant's internal threads. The screw threads inside the implant fixture are precisely machined to ensure a secure fit. Aggressive or improper use of rotary instruments, such as drills or taps, can nick, scrape, or deform these threads, which compromises the implant's ability to securely hold a new screw or abutment. This damage may lead to implant failure or necessitate implant removal.
Even minor thread damage can cause micro-movements of the abutment, resulting in repeated screw loosening or fracture. Therefore, preserving the integrity of internal threads is paramount.
The implant body itself is typically made of titanium or titanium alloy, materials chosen for strength and biocompatibility. However, excessive mechanical force or improper technique during screw retrieval can cause microfractures or structural damage to the implant body. This is especially critical because implant replacement is invasive and costly.
In worst-case scenarios, attempts to remove a fractured screw can lead to cracks or fractures of the implant fixture, rendering the implant unsalvageable.
Use of high-speed rotary instruments without adequate irrigation can generate heat, risking thermal damage to the peri-implant bone and soft tissues, potentially leading to bone loss and implant failure.
Studies have shown that temperatures above 47°C sustained for more than one minute can cause irreversible bone necrosis. Therefore, continuous irrigation and careful speed control during drilling are essential to avoid thermal injury.
If the fractured screw fragment is tightly engaged in the implant threads, attempts to remove it may push it further into the implant, making retrieval more difficult and increasing the risk of implant damage.
This phenomenon, known as “fragment migration,” can complicate retrieval and require more invasive procedures or even implant removal.
Multiple retrieval attempts may leave behind metal shavings or debris inside the implant, which can interfere with new screw placement and cause inflammation or infection.
Metal debris can also act as a nidus for bacterial colonization, increasing the risk of peri-implantitis, a destructive inflammatory process affecting the supporting bone.
Screw retrieval is often a time-consuming and technically demanding procedure that may cause patient discomfort and increase the risk of procedural complications.
Extended treatment times can lead to patient fatigue, increased anxiety, and potential soft tissue trauma, especially if multiple attempts are necessary.
Successful implant abutment screw retrieval requires a combination of clinical skill, appropriate tools, and a systematic approach. The choice of technique depends on the location and condition of the fractured screw fragment.
- Manual removal with explorers or sharp probes: Effective when the fractured fragment is loose or protruding above the implant body. Gentle manipulation may allow the fragment to be rotated out.
- Use of hemostats or forceps: For fragments accessible above the implant head, small dental forceps or hemostats can grasp and extract the broken screw.
- Ultrasonic scalers: Piezoelectric ultrasonic instruments can vibrate the fragment loose without damaging implant threads. This method is particularly useful when the fragment is tightly engaged but accessible.
- Creating a slot in the screw head: Using a small round bur to carve a slot allows a flat-head screwdriver to back the fragment out. This method requires precision to avoid damaging the implant.
Many implant manufacturers offer specialized screw retrieval kits that include:
- Reverse drills to create a dimple or hole in the fragment.
- Screw removal taps that engage the fragment and rotate it counterclockwise to back it out.
- Guides and collars to protect implant threads during drilling.
These kits reduce the risk of implant damage but require skill and proper use. They are often designed specifically for certain implant systems, so compatibility should be verified.
In rare cases where conservative methods fail, implant removal or surgical intervention may be necessary. This could involve:
- Surgical exposure of the implant apex to push the fragment out.
- Removal of the implant and replacement with a new fixture.
- Bone grafting to restore lost bone volume.
Surgical approaches carry increased morbidity and cost and are considered last-resort options.
To illustrate a typical screw retrieval procedure using a commercial kit, here is a stepwise protocol:
1. Assess the fracture location: Use radiographs or CBCT imaging to determine if the fragment is above or inside the implant body.
2. Select the appropriate guide and drill: Attach the rescue drill guide to align the drill precisely on the screw fragment.
3. Drill a dimple in the fragment in reverse mode with copious irrigation to avoid heat damage. The dimple allows the retrieval tap to engage securely.
4. Use the screw retrieval tap to engage and rotate the fragment counterclockwise, backing it out gently. Avoid excessive force to prevent implant damage.
5. Inspect implant threads for damage using an unused screw or thread cleaner tool.
6. Repair damaged threads if necessary with a screw tap repair tool. Some kits include thread repair taps designed to restore thread integrity.
7. Insert a new abutment screw and restore the prosthesis.
Prevention is always better than cure. Reducing the incidence of implant abutment screw fractures minimizes the need for retrieval procedures and associated risks.
- Ensure proper torque application according to manufacturer specifications. Over-torquing or under-torquing can both predispose to screw loosening and fracture.
- Achieve passive fit of prosthesis to minimize stress on screws. Misfit prostheses increase mechanical load on screws.
- Avoid occlusal overload and parafunctional habits through occlusal adjustment, night guards, and patient education.
- Use high-quality implant components with appropriate screw design and material. Some manufacturers offer screws with improved fatigue resistance.
- Regularly monitor and maintain implant prostheses to detect early signs of screw loosening or damage. Early intervention can prevent progression to fracture.
Implant abutment screw retrieval is a technically demanding procedure fraught with risks such as implant thread damage, implant body injury, thermal injury, and prolonged treatment time. Conservative techniques combined with specialized screw retrieval kits can effectively manage most cases while minimizing complications. However, clinicians must exercise caution, employ meticulous technique, and consider referral to specialists when necessary. Preventive strategies remain paramount to reduce the incidence of screw loosening and fracture, ultimately preserving implant longevity and patient satisfaction.
With careful planning, appropriate tools, and skilled execution, implant abutment screw retrieval can be performed successfully, safeguarding the investment in implant therapy and maintaining patient oral health.
Implant abutment screw fractures are primarily caused by screw loosening due to poor prosthesis fit, occlusal overload, parafunctional habits, repeated screw tightening, and material fatigue.
Removal techniques include manual extraction with probes or forceps, ultrasonic vibration, creating slots for screwdrivers, and using specialized screw retrieval kits with reverse drills and taps.
Rotary instruments can damage the implant's internal threads, cause thermal injury to surrounding bone, and potentially fracture the implant if not used carefully with irrigation and proper technique.
Implant removal is considered when the screw fragment cannot be retrieved without damaging the implant, when internal threads are severely damaged, or when repeated retrieval attempts fail.
Prevention includes ensuring proper torque during screw tightening, achieving passive prosthesis fit, controlling occlusal forces, using quality components, and regular maintenance and monitoring.
