Dental implants have revolutionized tooth replacement, offering a durable and functional solution. However, like any medical device, complications can arise. One common mechanical complication is the fracture of an abutment screw, which connects the implant fixture to the prosthetic crown. When this happens, the fractured screw fragment must often be removed to restore function. A frequent patient concern is whether the removal of a fractured implant abutment screw is painful. This comprehensive article explores the procedure, pain management, techniques, and outcomes related to fractured abutment screw removal.

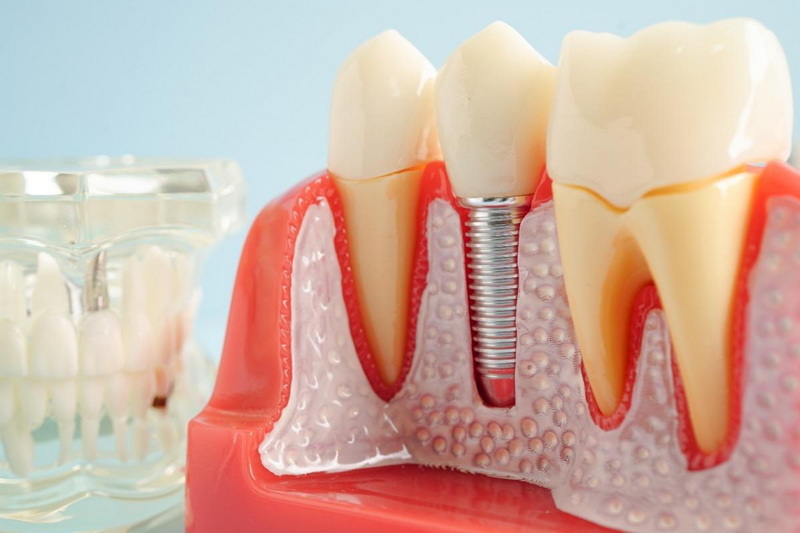

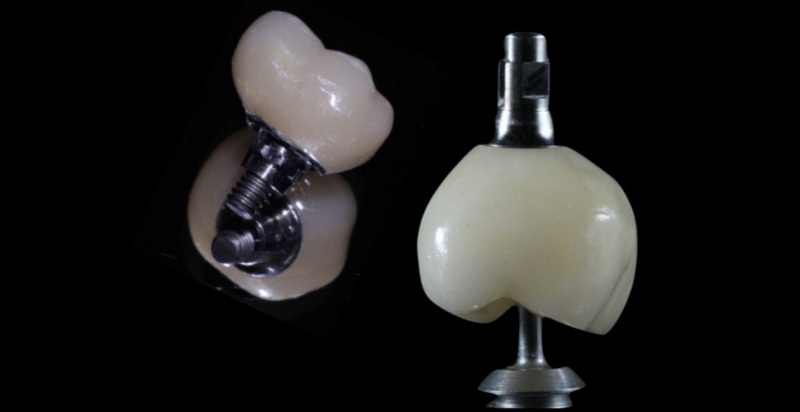

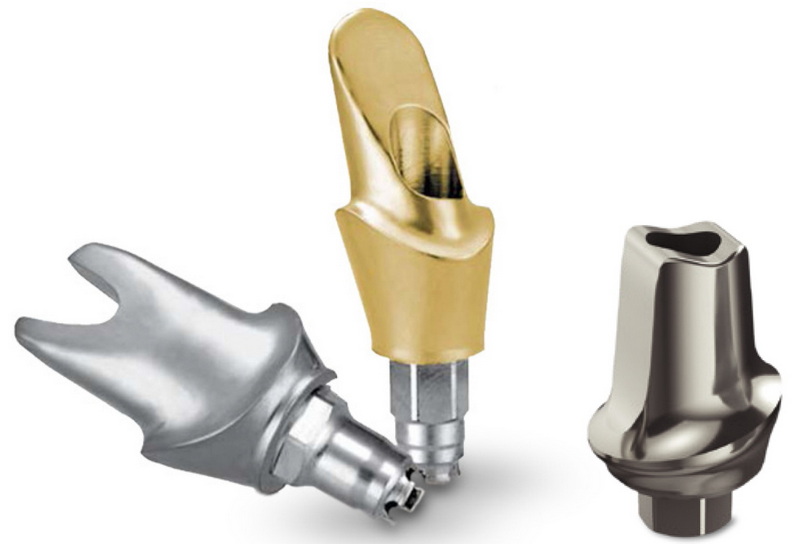

An abutment screw is a small but critical component that secures the abutment (the connector piece) to the dental implant fixture embedded in the jawbone. This screw ensures stability and retention of the crown or prosthesis.
Fractures can occur due to:
- Mechanical fatigue or material failure over time
- Excessive occlusal forces or trauma
- Screw loosening leading to micro-movements and stress concentration
- Manufacturing defects or improper torque application during placement
The fracture often occurs at the junction between the screw head and the first thread, a region subjected to maximum bending stress.
The removal procedure itself is generally not painful for the patient because:
- The implant fixture is osseointegrated (fused with bone), so the screw fragment is embedded within the implant body, not directly in contact with sensitive tissues.
- The procedure is performed under local anesthesia, numbing the area thoroughly.
- Removal involves precise mechanical or ultrasonic techniques that do not disturb the surrounding bone or soft tissue significantly.
Patients may experience some pressure or vibration sensations, but pain is typically minimal or absent during the procedure.
After removal, mild soreness or tenderness around the implant site can occur, similar to other dental procedures. This discomfort is usually manageable with over-the-counter pain relievers and subsides within a few days.
Removing a fractured abutment screw is a challenging task that requires skill and specialized tools to avoid damaging the implant's internal threads.
Before removal, the dentist assesses the screw fragment's position and condition using magnification and X-rays to plan the safest approach.
- Explorer or Probe: For fragments protruding above the implant platform, a sharp probe or explorer can be used to engage and unscrew the fragment counterclockwise.
- Forceps or Hemostats: If the fractured screw is accessible, artery forceps or hemostats can grasp and remove it.
An ultrasonic scaler tip is placed on the fractured screw fragment, and ultrasonic vibrations help loosen and "spin out" the screw with gentle counterclockwise torque. Lubricants like eugenol or mineral oil may be applied to reduce friction and ease removal.
If the screw is tightly embedded, a small groove can be made on the screw surface using a high-speed handpiece with a diamond bur. A custom or modified instrument (e.g., spoon excavator or screwdriver) then engages the groove to unscrew the fragment.
Specialized kits (e.g., Nobel Biocare Abutment Screw Retrieval Kit) include drill guides, reverse drills, and screw removal tools designed to extract broken screws safely without damaging the implant internal threads. The procedure involves:
- Drilling a small hole in the screw fragment
- Using a reverse drill or screw retrieval tool to back the screw out counterclockwise
Video demonstrations show step-by-step use of these kits for different implant systems.
If the screw fragment cannot be removed without damaging the implant, alternative approaches include:
- Leaving the fragment in place and using a shorter or custom-cut screw over it.
- Removing and replacing the entire implant if necessary.
Timely removal of a fractured abutment screw is crucial to prevent further complications. Leaving the fractured screw in place can lead to:
- Increased risk of implant failure due to micro-movements and bacterial infiltration.
- Difficulty in restoring the prosthesis properly, affecting chewing function and aesthetics.
- Potential damage to the internal threads of the implant, complicating future treatments.
Prompt intervention ensures the longevity of the implant and maintains oral health.
If a fractured abutment screw is not addressed, patients may experience:
- Persistent discomfort or pain around the implant site.
- Inflammation or infection due to bacterial colonization.
- Loosening or failure of the prosthetic crown.
- Bone loss around the implant due to chronic irritation.
These complications highlight the importance of professional evaluation and treatment.
Before the removal procedure, patients should:
- Inform the dentist of any medical conditions or medications.
- Follow pre-operative instructions, such as fasting if sedation is planned.
- Arrange for transportation if sedation or anesthesia is used.
After the procedure, patients are advised to:
- Avoid chewing on the affected side until healing is sufficient.
- Maintain good oral hygiene to prevent infection.
- Use prescribed medications or pain relievers as directed.
- Attend follow-up appointments for monitoring and restoration.
Proper preparation and aftercare contribute to a smooth recovery and successful outcome.
After successful removal:
- The implant internal threads are inspected for damage by trial insertion of a new screw.
- A new abutment screw is placed and torqued to manufacturer specifications (usually around 25 Ncm).
- The prosthetic crown or abutment is restored to full function.
- Follow-up appointments monitor healing and implant stability.
The removal of a fractured implant abutment screw is a technically demanding but generally painless procedure when performed by an experienced clinician. Thanks to advances in ultrasonic technology, specialized retrieval kits, and careful surgical techniques, most fractured screws can be removed without damaging the implant or causing significant patient discomfort. Post-procedure soreness is typically mild and manageable. Prompt treatment ensures restoration of implant function and longevity.
Removal is typically not painful due to local anesthesia and the nature of the procedure. Patients may feel pressure or vibration but minimal pain.
Methods include manual probing, ultrasonic scalers, creating grooves for screwdriver engagement, and specialized screw retrieval kits.
Yes, aggressive or improper techniques can damage internal implant threads, which is why careful, atraumatic methods are essential.
If removal fails, options include placing a shorter screw over the fragment or removing and replacing the implant.
The time varies by case complexity but typically ranges from 30 minutes to an hour. Difficult cases may require multiple visits.
