Dental implants have revolutionized tooth replacement, offering patients a durable and natural-looking solution. However, like any mechanical system, dental implants can encounter complications. One such issue is the fracture of the abutment screw, which connects the implant fixture to the prosthetic crown or bridge. Removing a broken abutment screw is a delicate and technically demanding procedure that requires precision, the right tools, and a thorough understanding of various removal techniques.
This comprehensive guide will explore the causes of abutment screw fractures, the tools and methods used for removal, step-by-step instructions, and tips to ensure a successful outcome. Additionally, we will provide visual aids and video resources to enhance understanding, followed by a detailed FAQ section to address common concerns.

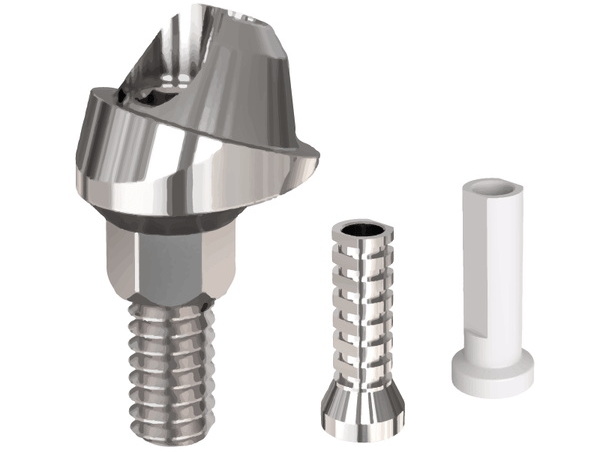

The abutment screw is a critical component in dental implant systems. It secures the abutment to the implant fixture embedded in the jawbone. When this screw fractures, it can jeopardize the stability of the implant restoration, cause discomfort, and potentially lead to infection or implant failure if not addressed promptly.
Understanding why abutment screws break is essential for prevention and effective management. The most common causes include:
- Excessive Occlusal Forces or Bruxism: Patients who grind or clench their teeth place undue stress on the implant components, increasing the risk of screw fracture.
- Improper Torque Application: Over-tightening or under-tightening the screw during placement can weaken the screw or cause loosening, leading to fracture.
- Material Fatigue or Manufacturing Defects: Although rare, defects in the screw material or design can predispose it to breakage.
- Misfit of Prosthetic Components: Poorly fitting crowns or abutments can create uneven forces on the screw.
- Corrosion or Loosening Over Time: Micro-movements and corrosion can degrade the screw's integrity.
Successful removal of a broken abutment screw depends heavily on having the right tools. Below is a detailed list of essential instruments:
| Tool/Equipment | Purpose | Notes |
|---|---|---|
| Wooden cotton swab stick | Creates sharp splinters to grip and loosen the broken screw fragment | Dip in water and denture cleaning solution for better grip and lubrication |
| Dental probe or sharpened periodontal probe | To tease and rotate the broken screw fragment | Useful if the fragment is movable |
| Ultrasonic scaler or piezo device | Vibrates the screw fragment to loosen it | Effective for stuck fragments |
| Screw removal kits (specialized) | Includes drills, taps, and extraction tools designed for screw removal | Kits vary by implant system and screw size |
| High-speed handpiece with burs | To create slots or grooves on the broken screw for screwdriver engagement | Requires careful handling to avoid implant damage |
| Dental aspirator | To suction out loose screw fragments | Useful when fragments cannot be grasped |
| Magnification tools (microscope, loupes) | To improve visibility during the procedure | Recommended for precision |
| Electrosurgical unit | To control bleeding if soft tissue damage occurs | Used in severe cases |
Before attempting removal, a thorough clinical and radiographic examination is essential. This helps determine the position, depth, and condition of the broken screw fragment and the implant itself.
- Clinical Examination: Check for mobility, inflammation, or signs of infection.
- Radiographs: Periapical or CBCT imaging can reveal the fragment's position and any damage to the implant.
- Patient History: Understand the cause of fracture and any contributing factors such as bruxism.
- Preparation: Ensure good lighting, magnification, and patient comfort. Administer local anesthesia if necessary.
This simple yet effective technique is often the first step in screw fragment removal.
- Break a wooden cotton swab stick to create sharp splinters.
- Dip the tip in water and denture cleaning solution to improve grip and lubrication.
- Insert the stick into the implant's internal hex or connection to catch the broken screw fragment.
- Gently rotate the stick counterclockwise to unscrew the fragment.
- This method mimics the action of a claw reamer bur and is particularly effective for fragments that are loosely stuck.
If the fragment is slightly mobile, a sharp dental probe or a Montana Jack scaler can be used to tease and rotate it.
- Insert the probe into the implant connection.
- Apply gentle counterclockwise pressure to loosen the fragment.
- If the fragment is firmly stuck, create small indents or a slot on the screw with a round bur to provide better grip.
Ultrasonic scalers or piezo devices can be used to apply vibrations that loosen the screw fragment.
- Place the ultrasonic tip in contact with the broken screw.
- Activate the device at a low power setting.
- The vibrations help break the bond between the screw and implant threads.
- Once loosened, use a probe or screwdriver to remove the fragment.
For screws that are firmly stuck, creating a slot on the broken screw's surface allows engagement with a flat-head screwdriver.
- Use a small round bur on a high-speed handpiece with copious irrigation.
- Carefully create a 1 mm wide slot across the occlusal surface of the broken screw.
- Insert a mini flat-end screwdriver into the slot.
- Rotate counterclockwise to unscrew the fragment.
Specialized screw removal kits are designed for difficult cases and include drills, taps, and extraction tools.
- Select the appropriate tool based on the implant system and screw size.
- Attach the tool to a handpiece set to reverse mode at low speed.
- Engage the tool with the broken screw fragment.
- Rotate counterclockwise to back out the fragment.
- If the screw does not rotate, use the kit's drill guides and taps to create a dimple and then unscrew the fragment.
Once the fragment is loosened, it may be difficult to grasp with forceps.
- Use a dental aspirator to suction out the fragment.
- Alternatively, fine forceps or needle holders can be used if the fragment is accessible.
- If soft tissue swelling or bleeding occurs, use an electrosurgical unit to control bleeding.
- In cases where the screw fragment is deeply embedded or the implant threads are damaged, surgical flap elevation may be necessary to gain better access.
- If multiple attempts at removal fail.
- If the implant threads are damaged.
- If the fragment is deeply embedded and inaccessible.
- If the patient has systemic conditions complicating the procedure.
While removal techniques are important, prevention is always better than cure. Here are some strategies to minimize the risk of abutment screw fracture:
- Proper Torque Application: Use a calibrated torque wrench to tighten screws to manufacturer-recommended values.
- Regular Maintenance: Schedule periodic check-ups to detect early loosening or wear.
- Occlusal Adjustment: Ensure even distribution of occlusal forces and manage parafunctional habits like bruxism with night guards.
- Use of High-Quality Components: Choose screws and abutments made from durable materials such as titanium alloys.
- Accurate Prosthetic Fit: Ensure precise fit of crowns and abutments to avoid uneven stress.
- Always use magnification (dental loupes or microscope) and adequate lighting.
- Avoid excessive force to prevent implant damage.
- Use copious irrigation to prevent overheating during drilling.
- Maintain aseptic technique to reduce infection risk.
- Document the procedure thoroughly for medico-legal purposes.
- Educate patients on the importance of oral hygiene and regular follow-ups.
Removing a broken abutment screw is a challenging but manageable procedure when approached methodically. Starting with simple manual techniques such as using a wooden cotton swab stick or dental probe can be effective for loosely stuck fragments. For more stubborn cases, ultrasonic vibration, slot creation with burs, and specialized screw removal kits provide reliable solutions. Proper assessment, careful technique, and patience are key to preserving implant integrity and ensuring successful restoration. Always consider patient comfort and safety, and do not hesitate to refer to a specialist when necessary.
Prevention through proper torque application, maintenance, and occlusal management remains the best strategy to avoid screw fractures. With the right knowledge and tools, clinicians can confidently manage this complication and maintain long-term implant success.
If the fragment can be gently turned counterclockwise with a probe or scaler without resistance, it is considered rotatable. If it is firmly stuck, more advanced techniques are needed.
No. Removing a broken abutment screw requires specialized dental tools and expertise to avoid damaging the implant or surrounding tissues. Always seek professional dental care.
If the internal threads of the implant are damaged during removal, the implant may need to be replaced. After removal, always verify thread integrity using a guide pin or waxing screw.
Yes, any surgical or invasive procedure carries infection risk. Proper aseptic technique, irrigation, and sometimes antibiotics are necessary to minimize this risk.
The time varies depending on the difficulty of removal and the method used. Simple cases may take a few minutes, while complex cases requiring drilling and specialized kits may take longer.
