Dental implants have revolutionized restorative dentistry, providing patients with durable and natural-feeling tooth replacements. A critical component in the implant process is the healing abutment, which shapes the gum tissue and protects the implant site during healing. For clinicians and dental technicians, correctly identifying the 3i healing abutment numbers is essential for selecting the appropriate replacement part, ensuring optimal healing and prosthetic success.
This comprehensive guide will walk you through the process of identifying the correct 3i healing abutment number for replacement, explaining the significance of each number, the different profiles and sizes available, and practical tips for handling and replacing these components. Throughout the article, you will find detailed explanations, images, and video tutorials to enhance your understanding.

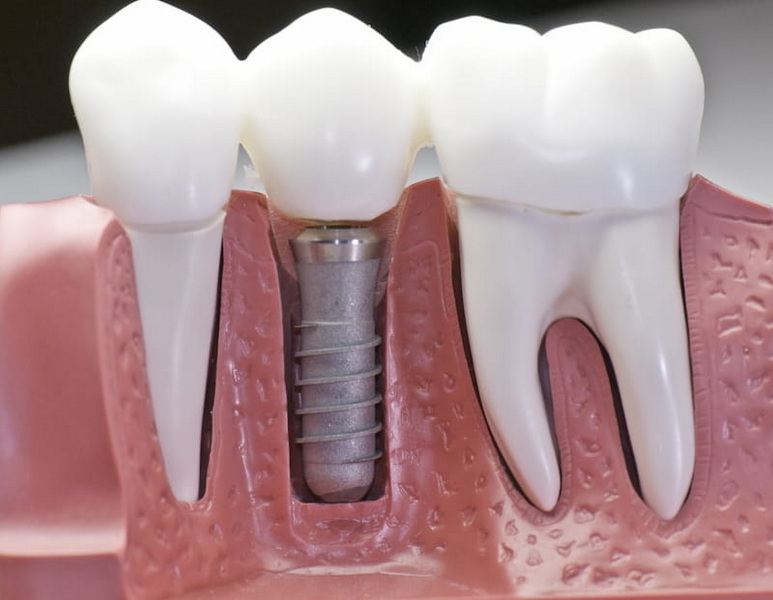

A healing abutment is a temporary component placed on a dental implant after the implant surgery. Its main functions are:
- Protecting the implant from debris and infection.
- Shaping the gingival tissue to form a proper emergence profile for the final prosthetic restoration.
- Allowing soft tissue healing around the implant site.
Healing abutments are essential to guide the soft tissue healing properly, preventing the gum from collapsing over the implant and ensuring that the final crown or prosthesis fits naturally and comfortably.
3i healing abutments are designed specifically for use with Biomet 3i implant systems, known for their precision and biocompatibility. These abutments come in various sizes and profiles to accommodate different implant diameters and soft tissue thicknesses.
The 3i system is widely used globally and is recognized for its modular components, which allow clinicians to customize the healing process according to each patient's unique anatomy. Selecting the correct healing abutment number ensures that the soft tissue heals with an optimal shape and thickness, which is critical for the long-term success of the implant.
The 3i healing abutment numbers are a systematic way to identify the exact dimensions and specifications of each healing abutment. Understanding these numbers is crucial for selecting the correct replacement.
Each healing abutment is marked with three numbers, often printed like a fraction, and a larger number:
- Emergence Profile (EP) Diameter: The numerator in the fraction, representing the diameter of the abutment's emergence profile in millimeters.
- Implant/Abutment Platform Diameter: The denominator in the fraction, indicating the diameter of the implant platform in millimeters.
- Height: The large number printed separately, indicating the height of the healing abutment in millimeters.
For example, a marking of 4.50/3.00 with a height of 5 means:
- Emergence profile diameter: 4.5 mm
- Implant platform diameter: 3.0 mm
- Height: 5 mm
This numbering system allows clinicians to quickly identify the exact size and shape of the healing abutment, which is especially helpful when replacing lost or damaged components.
3i healing abutments are available in several platform diameters, each color-coded for easy identification:
| Platform Diameter | Color Code | Abbreviation |
|---|---|---|
| 3.4 mm | Purple | NP (Narrow Platform) |
| 4.1 mm | Blue | RP (Regular Platform) |
| 5.0 mm | Yellow | WP (Wide Platform) |
| 6.0 mm | Green | - |
The color coding simplifies the identification process during clinical procedures, reducing errors and saving time.
Healing abutments come in various heights to accommodate different gingival thicknesses. Common heights include 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, and 8 mm. The emergence profiles also vary to match the natural contour of the gum tissue.
| Platform | Heights (mm) Available | Emergence Profiles (mm) |
|---|---|---|
| 3.4 mm | 2, 3, 4, 6 | 3.4, 3.8 |
| 4.1 mm | 2, 3, 4, 6, 8 | 4.1, 5.0, 6.0, 7.5 |
| 5.0 mm | 2, 3, 4, 6, 8 | 5.0, 5.6, 6.0, 7.5 |
| 6.0 mm | 2, 3, 4, 6, 8 | 6.0, 6.8, 7.5 |
Selecting the correct height is crucial because it ensures that the healing abutment extends through the soft tissue adequately, promoting proper tissue contouring and preventing tissue overgrowth or recession.
Start by determining the diameter of the implant platform where the healing abutment is seated. This can usually be identified by:
- The color coding on the implant or abutment.
- The implant system documentation.
- Measuring with a caliper if accessible.
If the implant platform diameter is unknown, you can also refer to the patient's surgical records or radiographs to estimate the implant size.
The emergence profile diameter corresponds to the soft tissue contour around the implant. This is the first number in the fraction on the abutment marking. It must match the anatomical needs of the patient.
Choosing the correct emergence profile helps ensure that the gum tissue heals with a natural contour, which is essential for esthetics and function.
The height is the vertical dimension of the healing abutment, critical for ensuring the abutment extends appropriately through the gum tissue to allow proper healing.
If the existing healing abutment is available, measure its height directly. Otherwise, assess the soft tissue thickness clinically to select the appropriate height.
The healing abutment is marked with the three numbers as described above. Use these to confirm the exact size and profile.
If the markings are worn or unclear, use the implant records or consult the manufacturer's guide.
Refer to the Biomet 3i restorative or surgical manuals to cross-reference the numbers and confirm the exact product code for ordering a replacement.
The manuals provide detailed charts and images to help identify the correct part based on the 3i healing abutment numbers.
- Hex driver (typically 0.048” or 1.2 mm hex driver) to remove and place healing abutments.
- Serrated hemostat for tight abutments (as shown in tutorial videos).
- Floss to thread through driver to prevent accidental swallowing.
If the healing abutment is too tight to remove by finger torque:
- Insert the hex driver fully into the abutment screw.
- Support the driver from the top.
- Use a serrated hemostat on the driver handle.
- Slowly rotate counterclockwise to loosen the abutment.
Avoid excessive force to prevent damage to the implant or abutment.
- Select the correct healing abutment by matching the 3i healing abutment numbers.
- Align the hex driver with the abutment screw.
- Insert and tighten carefully by hand, then secure with the hex driver.
- Avoid overtightening to prevent damage.
Always ensure that the healing abutment and tools are sterile before placement to reduce the risk of infection.
Sometimes the healing abutment markings are worn or missing. In this case:
- Refer to the patient's implant records.
- Use radiographs to estimate implant size.
- Measure the soft tissue thickness to select appropriate height.
- Consult the manufacturer's catalog or customer support.
If the abutment is stuck due to debris or over-tightening:
- Use a hex driver with a serrated hemostat for better grip.
- Apply gentle, steady counterclockwise torque.
- Avoid using excessive force to prevent damage.
Selecting an inappropriate emergence profile can lead to poor soft tissue healing or esthetic problems.
- Assess the gingival architecture carefully.
- Choose a profile that matches the natural contour of the adjacent teeth.
- Consult with the restorative dentist for esthetic considerations.
Correctly identifying the 3i healing abutment number is vital for ensuring the proper healing and success of dental implants. By understanding the significance of the emergence profile diameter, implant platform diameter, and abutment height, clinicians can select the appropriate healing abutment for replacement. Using the manufacturer's color coding and product manuals, combined with precise measurements and proper tools, guarantees an accurate and efficient replacement process. This knowledge minimizes complications and enhances patient outcomes in implant dentistry.
The numbers represent the emergence profile diameter (numerator), implant platform diameter (denominator), and the height of the healing abutment in millimeters (large number). These help identify the exact dimensions for replacement.
Platform diameter is identified by the color coding on the implant or abutment (purple for 3.4mm, blue for 4.1mm, yellow for 5.0mm, green for 6.0mm) and confirmed by measuring or documentation.
A 0.048” hex driver is standard for removal. For tight abutments, a serrated hemostat can be used to assist with loosening by applying slow counterclockwise torque.
Yes, Biomet 3i offers custom gingival heights for healing abutments to accommodate varying soft tissue thicknesses.
Use the QuickSeat® connection system which provides an audible and tactile click when the abutment is fully seated. Radiographs can also verify seating.
