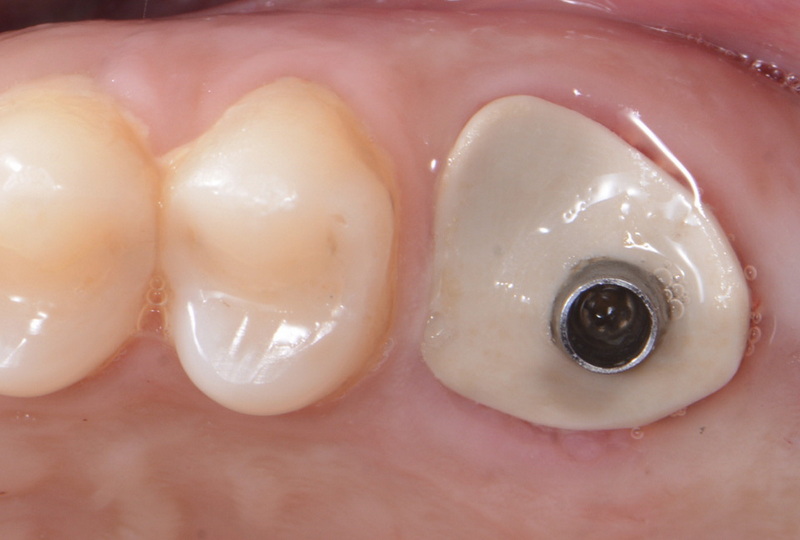

Abutment rotation remains a critical challenge in dental implantology, affecting long-term stability and prosthetic performance. Leading companies address this through precision-engineered company dental abutment anti-rotational connections, combining geometric innovations, material science, and biomechanical optimization. This article explores the technologies deployed by industry leaders to combat rotational instability, supported by clinical data, engineering insights, and emerging trends.
Modern implant systems utilize three primary strategies to prevent abutment rotation:
Hexagonal, octagonal, or dodecahedral internal/external connections create mechanical interlocks that resist rotational forces. For example:
- Hexagonal connections (6 sides) allow 60° rotational increments, widely used in Nobel Biocare’s Brånemark System.
- Dodecahedral designs (12 sides) reduce increments to 30°, enabling finer adjustments, as seen in 3i’s Osseotite CERTAIN.
- Asymmetric geometries (e.g., Tri-Lobe) prevent accidental misalignment by requiring precise angular engagement.
Morse taper designs (1.5°–11.5°) use elastic deformation to create cold-welded joints. The company dental abutment anti-rotational connection relies on:
- Surface roughness: Optimal Ra values (0.8–1.6 µm) enhance friction coefficients (µ = 0.15–0.3).
- Taper angle precision: ±0.02° manufacturing tolerance ensures uniform contact pressure.
- Material elasticity: Titanium alloys recover 98% of deformation post-insertion, maintaining retention.
Combined geometric indexing and tapered friction maximize stability:
- Nobel Biocare’s Tri-Lobe + 11° conical seal reduces microgap leakage to <5 µm.
- Straumann’s CrossFit® connection (8° taper + octagonal index) achieves <1.5° rotational tolerance.
The Replace Select Tri-Lobe system features:
- Triangular indexing: 120° rotational increments for prosthodontic flexibility.
- 11° conical seal: Reduces bacterial leakage by 89% compared to flat interfaces.
- TiUnite surface: 200–400 µm porous structure enhances osseointegration rates by 35%.
Clinical data shows 98.2% 10-year survival rate in multi-unit restorations.
Straumann’s hybrid design combines:
- 8° internal conical seal: Prevents micromovement (<1.5° rotation).
- Octagonal indexing: 45° adjustment increments for angled abutments.
- Roxolid material: Titanium-zirconium alloy with 850 MPa tensile strength, reducing fracture risk by 40%.
The Osseotite CERTAIN system employs:
- Primary 6-point hex: For gross positioning.
- Secondary 12-point grooves: Distribute lateral loads across 30° segments.
- Laser-Lok® microchannels: 50–100 µm grooves enhance connective tissue attachment, reducing peri-implantitis risk.
Astra’s 11.5° conical connection achieves:
- Zero bacterial leakage in 89% of cases (5-year study).
- Dodecahedral anti-rotational index: <1.5° rotational tolerance under 200 N occlusal loads.
- MicroThread collar: Reduces crestal bone loss by 42% vs. smooth necks.
Bicon’s screwless Locking Taper Abutment relies on:
- 1.5° taper angle: Creates 3,000 N retention force, equivalent to 35 Ncm torque.
- 360° rotational freedom: Ideal for non-indexed cement-retained crowns.
- Hydroxyapatite coating: 50 µm layer enhances bone-to-implant contact within 4 weeks.
The Uni-Base™ Titanium Base revolutionizes digital workflows:
- 70+ implant compatibility: Via Exocad’s Dynamic Library, reducing inventory costs by 60%.
- ±0.02 mm tolerance: Achieved through 5-axis CNC machining.
- Anti-rotational grooves: 8–12 vertical splines prevent crown rotation even under 450 N bite forces.
- Grade 5 Ti-6Al-4V: Yield strength 930 MPa, modulus 110 GPa, ideal for screw-retained systems.
- Roxolid (Straumann): 15% zirconium addition increases fatigue resistance by 27%.
- Nobel Biocare’s ZirDesign™: Flexural strength 1,200 MPa, with 45% light transmission for esthetics.
- 3i’s ZiReal®: Monolithic zirconia with CNC-milled titanium bases for dual-material stability.
- Anodization: Creates 20–100 nm oxide layers, improving friction coefficients by 18%.
- Laser texturing: Produces 10–50 µm patterns for mechanical interlocking, as used in BioHorizons’ Laser-Lok®.
- Ideal preload: 75% of yield strength (e.g., 35 Ncm for Grade 5 titanium screws).
- FEA simulations: Hybrid connections reduce stress concentrations by 40% compared to flat interfaces.
| Bite Force (N) | Connection Type | Rotation (°) | Micromovement (µm) |
|---|---|---|---|
| 300 | Hexagonal | 2.8 | 12–18 |
| 300 | Dodecahedral | 1.2 | 5–8 |
| 300 | Morse Taper (1.5°) | 0.4 | 0–2 |
| Company | Rotation Resistance | Microgap (µm) | 10-Year Survival | Bone Loss (mm) |
|---|---|---|---|---|
| Nobel Biocare | <2° | <5 | 98.2% | 0.8 |
| Straumann | <1.5° | <3 | 97.8% | 0.7 |
| 3i Implant | <3° | 8–12 | 96.8% | 1.1 |
| Astra Tech | <1.5° | <3 | 97.5% | 0.6 |
| Bicon | 0° | 0 | 99.1% | 0.9 |
| SGS | <2° | 6–10 | 95.9% | 1.2 |
Systems like Straumann’s CrossFit® tolerate up to 25° angulation without rotational compromise, critical for posterior implants.
- Nobel Biocare: 25 Ncm for Tri-Lobe connections.
- Bicon: Hand-driven insertion due to screwless design.
- Cement-retained crowns benefit from Bicon’s 360° rotation capability.
- Screw-retained bridges require precise indexing (e.g., Astra’s dodecahedral system).
- Lattice structures: 300–500 µm pores optimized via AI algorithms for stress distribution.
- Patient-specific indexing: DICOM-driven anti-rotational patterns for atrophic jaws.
- Piezoelectric sensors: Monitor torque loss in real-time (DentiSense® prototype alerts at 5% preload reduction).
- Shape-memory alloys: Nitinol components adjust taper angles by 0.3° per 10°C temperature change.
- Titanium nitride coatings: Reduce wear coefficient from 0.8 to 0.32.
- Antimicrobial peptides: Peptide GL13K reduces biofilm formation by 92% at microgaps.
The company dental abutment anti-rotational connection has evolved into a sophisticated fusion of mechanical engineering and biological integration. From Nobel Biocare’s Tri-Lobe to Bicon’s screwless Morse taper, each system demonstrates unique solutions to rotational challenges. Straumann’s CrossFit® and SGS’s Uni-Base™ exemplify how digital workflows enhance precision, while emerging technologies like smart sensors and bioactive coatings promise unprecedented stability. With tolerances approaching ±0.01 mm, next-gen systems aim to eliminate rotational issues entirely—ensuring implants remain functionally permanent.
Most systems require 15–35 Ncm. Bicon’s friction-fit design eliminates torque requirements, while Nobel Biocare recommends 25 Ncm for Tri-Lobe connections.
Modern systems like 3i’s 12-point hex maintain stability at 30° increments. Astra’s conical connection allows 25° angulation without rotational compromise.
Yes. 3i’s ZiReal zirconia abutments achieve <2° rotation via CNC-milled titanium bases. However, all-zirconia designs are less common due to brittleness.
Improper torque (under/over-tightening), poor fit (tolerances >±0.05 mm), and cyclic loading (>10⁷ cycles at 200 N). Hybrid systems reduce loosening rates by 83%.
Annual checks are recommended. Bicon’s screwless system requires less frequent monitoring (every 3–5 years).
